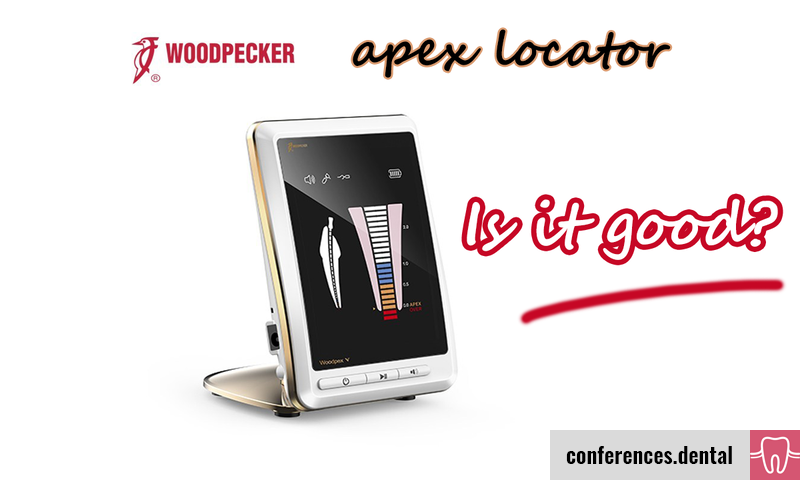

The Woodpecker Woodpex V is an advanced apex locator designed for precise determination of the working length during endodontic treatments. It features radio frequency technology that ensures maximum precision in measuring and tracking the file's trajectory inside the root canal, even in the presence of blood or residual pulp. This technology, combined with an upgraded algorithm, provides a high accuracy rate of approximately 97.7% to 98%, making it one of the most reliable apex locators available today.

The device boasts a modern and elegant design with a large, bright, and clear LCD screen that displays the file's position in different colors for easy visualization. It also includes an automatic calibration system that enhances measurement accuracy and stability while offering strong anti-interference capabilities. The Woodpex V is compatible with some Woodpecker endodontic motors, such as the Endo Smart+ and Endo Free, allowing for integrated functionality in endodontic procedures.

In terms of usability, the Woodpex V comes with several autoclavable accessories including lip clips, lip hooks, test leads, and a tester, ensuring hygiene and convenience in clinical settings. Its sturdy metal base provides stability and a non-slip feature, and it includes an adjustable volume alarm that increases in frequency as the file approaches the apex, adding an extra layer of safety during use. The device is lightweight (336 grams) and compact, with dimensions of approximately 84 mm x 88 mm x 112 mm, making it easy to handle and operate.

Specifications:
- Battery: Rechargeable lithium battery, 3.7V/750mAh capacity, eliminating the need for frequent battery replacements.
- Power consumption: Approximately 0.5W.
- Screen: A bright and clear 4.5-inch LCD display that shows the file position with different colors for easy visualization.
- Dimensions: Compact size measuring 84 mm (length) × 88 mm (width) × 112 mm (height).
- Weight: Lightweight at 336 grams for easy handling.
- Adapter input: 100V - 240V, 50/60Hz.
- Operating environment: Temperature range of +5°C to +40°C, relative humidity between 30% and 75%, and atmospheric pressure from 70 kPa to 106 kPa.
- Alerts: Equipped with a buzzer that sounds when the endodontic file is less than 2 mm from the apex, with adjustable volume.
- Accessories: Includes autoclavable file clips, lip hooks, measuring wires, and testers to prevent cross-infection.
- Technology: Uses advanced multi-frequency network impedance measurement technology and automatic calibration for high accuracy, even in wet canals or in the presence of blood or residual pulp.
- Additional features: Folding screen for adjustable viewing angle, high-resolution color display, and compatibility with Woodpecker endodontic motors for integrated use.
